Equipment we supply.

Generator brands we supply

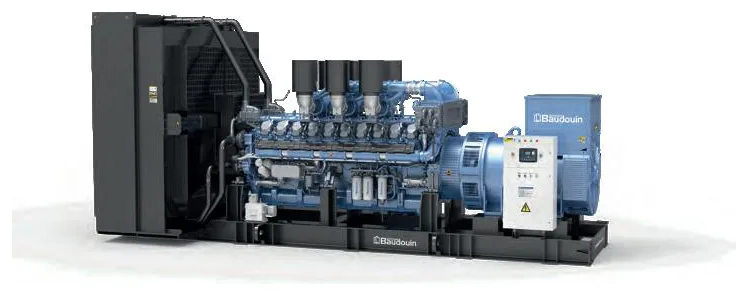

Baudouin data centre generator sets

Baudouin has been building engines in France since 1918. Its M33, M55 and M61 range is designed for data centre standby power, from single sets to multi-megawatt plant. We supply, place and commission them with your switchboard, fuel system and BESS.

• Dual redundant starter motors as standard
• Load acceptance to ISO 8528 performance class G3
• Data centre ratings (DCR and DCP)
• Controller with AMF and synchronising, Ethernet remote monitoring and BMS/PLC integration
• Suitable for HVO renewable diesel
• Options: base fuel tank for extended running, fuel polishing, acoustic and 2-hour fire-rated enclosures

Engine platforms

Model	Up to
20M33	2,500 kVA
12M55	3,125 kVA
16M55	4,125 kVA
20M55	5,000 kVA
20M61	6,250 kVA

Manufacturer figures. Output depends on rating type, frequency and site conditions; we size each set to your load.

Battery energy storage

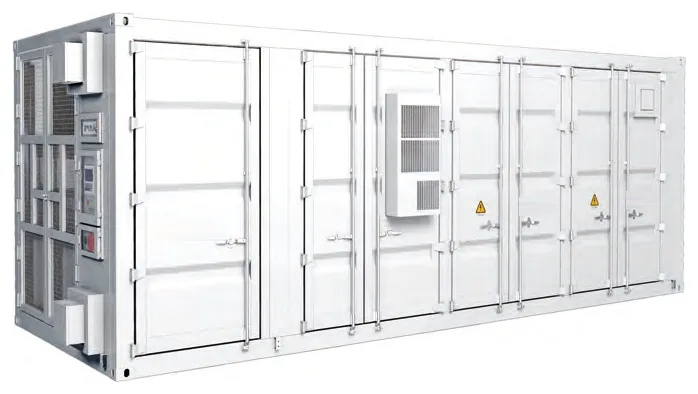

BESS for data centres

Lithium iron phosphate (LFP) battery systems, from a single cabinet in a plant room to multi-megawatt plant connected at medium voltage. They carry the load through outages and generator start-up, and can shave peak demand from the grid.

• LFP cells with liquid cooling in every range
• String and cascaded systems manage and balance each battery string on its own, with no strings wired in parallel
• Power conversion efficiency up to 98.5%
• Independent fire detection and suppression system in every range
• Site monitoring and energy management, with Modbus TCP for integration with your BMS

System ranges

• Liquid-cooled cabinet125 kW · 233 or 261 kWh400 V AC · IP65 battery enclosure
• String system5 MW · 10 MWh per blockBattery and PCS containers, stepped up to 0.4–35 kV
• Cascaded high-voltage system8 MW · 16 MWh to 25 MW · 100 MWhConnects directly at 10 kV or 35 kV with no step-up transformer; responds in 5 ms or less

Manufacturer figures. Australian grid-connection and battery standards are confirmed for each project.

EV charging

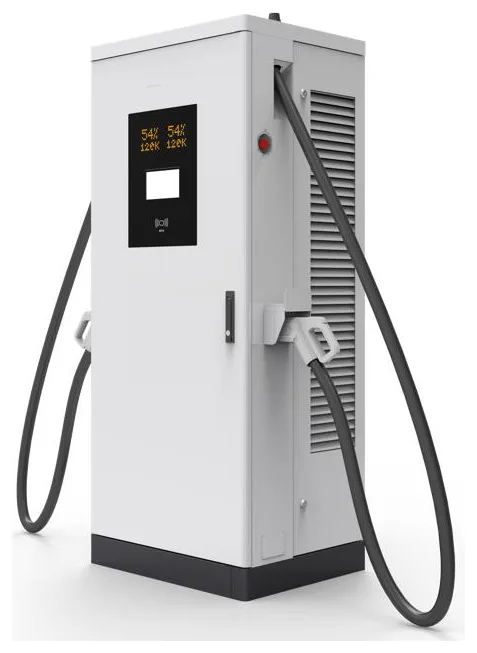

DC fast chargers

Dual-connector DC chargers for staff, visitor and fleet parking at data centre sites. We supply, install and commission them alongside the rest of your power works.

• Two connectors per charger, charging together with power shared automatically
• 200–1000 V DC output, 94% or better overall efficiency
• IP54 outdoor enclosure, rated for −30 °C to 55 °C
• 7-inch touchscreen with live charge status
• Remote monitoring, fault diagnosis and firmware updates over 4G or Ethernet
• Three-phase 400 V AC supply

Charger ratings

• 60 kWUp to 200 A600 × 400 × 1600 mm
• 120 or 180 kWUp to 250 A800 × 600 × 1700 mm
• 240 or 360 kWUp to 250 A800 × 800 × 1800 mm

Manufacturer figures (W × D × H). Connector type, payment options and Australian compliance are confirmed for each project.
